WHEN IT COMES TO
FILTERS THEY HAVE
TO BE PURE

Request Call Back

Filter

Product Grade
Grade 0.1 0.5 1 5 10 50 100
Particle Size (Microns)
G1 0 0 0-20 <65 <90 <100 <100
G2 0 0-16 20-32 65-82 90-96 100 100
G3 0 16-28 32-46 82-90 96-98 100 100
G4 0-10 28-40 46-58 90-95 98-99 100 100
F5 10-21 40-50 58-70 95-98 99-100 100 100
F6 21-41 50-65 70-83 98-100 100 100 100
F7 41-55 65-75 83-88 100 100 100 100
F8 55-77 75-89 88-97 100 100 100 100
F9 77-93 89-98 97-99 100 100 100 100
H10 93-99 98-100 99-100 100 100 100 100
H11 99-100 100 100 100 100 100 100
H12 100 100 100 100 100 100 100
H13 100 100 100 100 100 100 100
H14 100 100 100 100 100 100 100

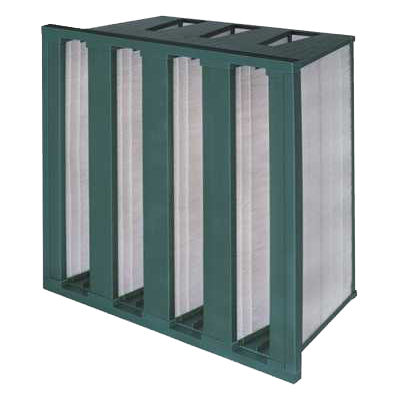

Rigid Bag Filter

Airflow Rate m3/hr (592x592) Up to 5000
Initial Pressure Drop Clean 170Pa
Rec. Final Pressure 450Pa
Maximum Working Temperature 70°C

Application

A high airflow capacity filter for use in general air conditioning systems where space is restricted or a rigid filter construction is required to combat turbulence, variable air volume conditions or vibrations.They will operate unaffected by fan shut down or start up. A low pressure drop filter giving maximum economy and extremely long service life.

Construction

Manufactured from either non fibre shedding glass fibre paper or Polypropylene synthetic media, the filter packs are mini pleated with the pleats separated by thermoplastic beads.The filter packs are then sealed into a Polystyrene case with Polyurethane sealant.

Range

Available in a range of standard sizes and grades, please contact us for full details.
