Filter

Product Grade
Grade 0.1 0.5 1 5 10 50 100
Particle Size (Microns)
G1 0 0 0-20 <65 <90 <100 <100
G2 0 0-16 20-32 65-82 90-96 100 100
G3 0 16-28 32-46 82-90 96-98 100 100
G4 0-10 28-40 46-58 90-95 98-99 100 100
F5 10-21 40-50 58-70 95-98 99-100 100 100
F6 21-41 50-65 70-83 98-100 100 100 100
F7 41-55 65-75 83-88 100 100 100 100
F8 55-77 75-89 88-97 100 100 100 100
F9 77-93 89-98 97-99 100 100 100 100
H10 93-99 98-100 99-100 100 100 100 100
H11 99-100 100 100 100 100 100 100
H12 100 100 100 100 100 100 100
H13 100 100 100 100 100 100 100
H14 100 100 100 100 100 100 100

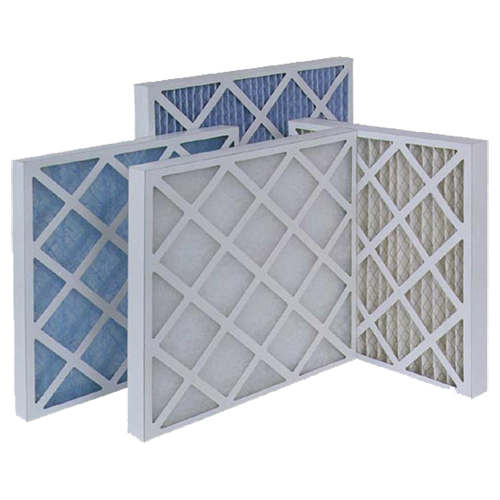

Glass/Pleated/Synthetic Panel Filter

Face Velocity Rating Glass 1.85/Pleated 2 1.85/4 2.6 M/S
Initial Pressure Clean Glass 40 Pa/Pleated 50 Pa
Rec. Final Pressure 250 Pa
Max Working Temp. Glass 100°C/Pleated 80°C

Application

With the increased demands of advancing technology, panel filters provide a high level of efficiency at a low replacement cost.

Construction

Glass Media Panel Filters - Produced as per Glass Media Pads, the elements are then bonded into a card or galvanised frame as required. They are also available with a scrim to reduce fibre shedding.

Pleated Panel Filters - The pleated element is produced by pleating a highly efficient synthetic filter media which is non-hygroscopic, and flame retardant (BS 2963) to a support wire mesh.The construction is completed by fixing and bonding the pleated element into a card or galvanised frame (FR) to eradicate any possible movement or by-pass by the airflow. In addition to the 25mm and 50mm panels,we offer a 100mm depth version as a standard product for high velocity applications.

Synthetic Media Panel Filters - Produced as per Synthetic Media Pads, the elements are then bonded into a card or galvanised frame as required.

Range

Glass, Pleated and Synthetic panel filters are available in a wide range of standard sizes and efficiencies, please contact us for full details.
